Aluminized PET Film Coated Fiberglass Heat Reflective Sleeve with Zipper Closure


High Temperature, Heat & Flame Resistant, Radiant Heat Reflective Protection for Wire, Cables, Hoses and Tubing

450°F / 232°C Continuous Exposure / 1000°F / 537°C Peak Exposure

Aluminized PET film coated fiberglass sleeve is a high temperature, heat resistant and radiant heat reflective sleeve can be used to protect industrial wires, cables, hoses (hydraulics), piping and tubing from radiant heat sources such as glowing steel slab, liquid metal pour stream, infrared heaters and other similar sources.

The base fabric is slit into a tape, which then has a zipper closure added to result in a sleeve that can be installed and removed at will.

This aluminized sleeve reflects more than 95% of the radiant energy that hits its surface, keeping the underlying cables, hoses and wires cool.  Available in sizes from 1" through 12" ID.  Larger sizes are available under special order.  Fabric weight used to make these sleeves is 21oz/sq.yd.  Other fabric weights may be available upon request.

The material is suitable for use in high flex and movement applications.

The reduced continuous temperature limit of this material is due to the adhesive used to help bond the aluminum film layer to the fabric.  Notwithstanding the temperature limit, intense radiant heat can be reflected while still under the continuous temperature limit.

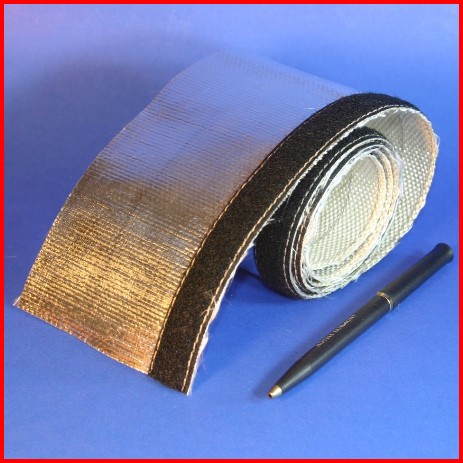

aluminum foil coated fiberglass sleeve with hook loop closure heat reflective wire cable hose protection
