Braided Fiberglass Sleeve with Acrylic Saturant


High Temperature, Heat & Flame Resistant and Thermal Insulating

1200°F / 648°C Continuous Exposure: Higher Intermittent

This high temperature and heat resistant fiberglass sleeve is a braided fiberglass (fibreglass / glassfibre) sleeve, fabricated from high quality type E fiberglass that will not burn and will withstand continuous exposure to temperatures of 1200°F / 648°C. It provides excellent protection for industrial wires, cables, hydraulic hoses, tube and pipes and also provides thermal insulation and personnel protection.

An acrylic saturant has been added to aid in handling and to add anti-fray properties.  The saturant will smoke off at temperatures above 425F.

This high temperature sleeve / heat resistant sleeve resists most acids and alkalis and is unaffected by most bleaches and solvents.  It is highly flexible and conformable.  The base fiber is manufactured to the specifications of ASTM D-578, ASTM committee D13, and subcommittee D13.18.  This product is 100% Asbestos free.

Available By-The-Foot and in 100 foot lengths.  Minimum order value may apply to By-The-Foot quantities.


Technical Specifications
Fiber Type: E Glass
Specific Gravity: 2.54-2.69
Breaking Tenacity: 1.71 gf/TEX. Std. 1.71 gf/TEX Wet
Effect of Heat: Will not burn; Retains 75% tensile at 343°C; Softens at 732-877°C; Melts at 1121-1182°C
Tensile Strength: 450,000-500,000 psi.
Effect of Acids and Alkalis; Resistance to acids is fair.  Good resistance to most alkalis.
Breaking Elongation:  4.81% Std.  4.81% Wet
Elastic Recovery: 100%
Effect of Bleaches and Solvents: Unaffected
Average Stiffness: 2824.3 cn/TE

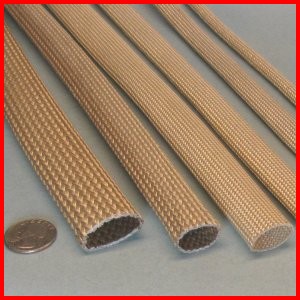

Fiberglass Braided Acrylic Saturated Sleeve Premium Grade Wire Cable Hose Protection

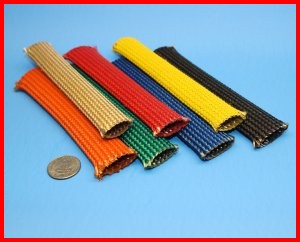

Fiberglass Sleeve with Acrylic Saturant Colored
