Products > Sleeves > Thermal / Flame & Fire Protection

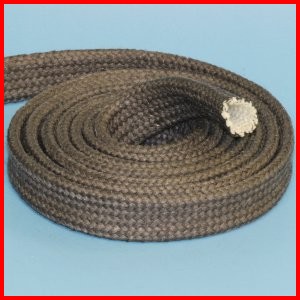

Graphite Coated Braided Fiberglass sleeve for wire cable & hose protection


High Temperature, Heat & Flame Resistant

1100°F / 593°C Continuous Exposure: Higher Intermittent

FlameShieldä high temperature, heat and flame resistant and thermal insulating graphite coated braided fiberglass sleeve will withstand temperatures of 1100°F / 593°C continuous exposure.  The base high temperature and heat resistant braided fiberglass sleeving is fabricated from high quality type E fiberglass that will not burn.  The sleeve is then coated with graphite, adding lubrication and additional protection from splatter and molten metal attachment.  This high temperature insulation sleeve protects wire, cable, hose, pipe and tubing, along with providing energy savings and personnel protection.

This sleeve resists molten splash and welding splatter very well as it cannot stick to the graphite.


Technical Specifications

Fiber Type: E Glass
Specific Gravity: 2.54-2.69
Breaking Tenacity: 1.71 gf/TEX. Std. 1.71 gf/TEX Wet
Effect of Heat: Will not burn; Retains 75% tensile at 343°C; Softens at 732-877°C; Melts at 1121-1182°C
Tensile Strength: 450,000-500,000 psi.
Effect of Acids and Alkalis; Resistance to acids is fair.  Good resistance to most alkalis.
Breaking Elongation:  4.81% Std.  4.81% Wet
Elastic Recovery: 100%
Effect of Bleaches and Solvents: Unaffected
Average Stiffness: 2824.3 cn/TEX
fiberglass braided sleeve with graphite coating high temperature heat resistant
