Products > Sleeves > Firesleeve - Aviation & Industrial

Firesleeve - High Temperature, Heat, Flame, Fire Resistant Silicone Rubber Coated Fiberglass Sleeve & Jacket for Wire, Cable, Hose and Tube Protection


500°F / 260°C Continuous Exposure / 1000°F / 537°C Peak Exposure

FlameShieldTM Firesleeve (sometimes spelled fire sleeve or fire-sleeve) is the perfect sleeve and jacket choice for protecting industrial hydraulic hoses and lines, pneumatic lines, fuel & oil lines, brake lines, wires and cables from exposure to high temperature, heat, flame, fire and pyro exposure.  The extra thick special formulation of silicone rubber on our firesleeve sheds molten metals, slag, welding splatter, electrical or grinding sparks and contamination.  Firesleeve also provides protection from ozone, UV and abrasion.

The standard colour of firesleeve is red-oxide, but custom colours such as blue, grey, black, yellow and green are available; great for identifying hose and cable use when the sleeve is installed. Firesleeve is THE standard high-temperature and molten splash pyro protection jacket and sleeve for hose & cable.

Firesleeve is normally supplied in 50 & 100 foot lengths, but custom by-the-foot lengths are also available.

The industrial grade of Firesleeve is fabricated from a knitted fiberglass yarn substrate, while the aviation grade Firesleeve is fabricated from a thicker and denser braided fiberglass yarn (Aviation grade Firesleeve meets AS1072, allowing qualified hose assemblies to pass testing to AS1055D specifications). For further information on the Aerospace grade of Firesleeve Click Here.

Industrial Firesleeve is available in sizes ranging from 0.25" Inside Diameter through 5" I.D. in 27 size steps.

Download Firesleeve Catalog Section

Select a Sleeve Image Below for More Detailed Information

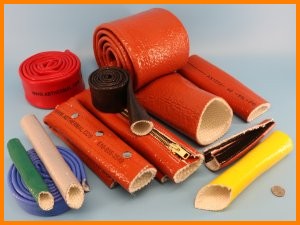

Firesleeve High Temperature Heat Protection for wires cables hoses
